Certified robot for safe carriage of passengers for robot-based amusement rides: the passenger robots enable highly dynamic robot motions and meet the most stringent safety requirements.
The KR passenger is the specialist for the safe and novel carriage of passengers. It combines the dynamic performance of an industrial robot with the highest priority when working with people: guaranteed passenger safety by meeting the very highest safety requirements – it is TüV-certified (PTU), EN 13814- and CSEI-compliant, and thus even safer than a standard robot.

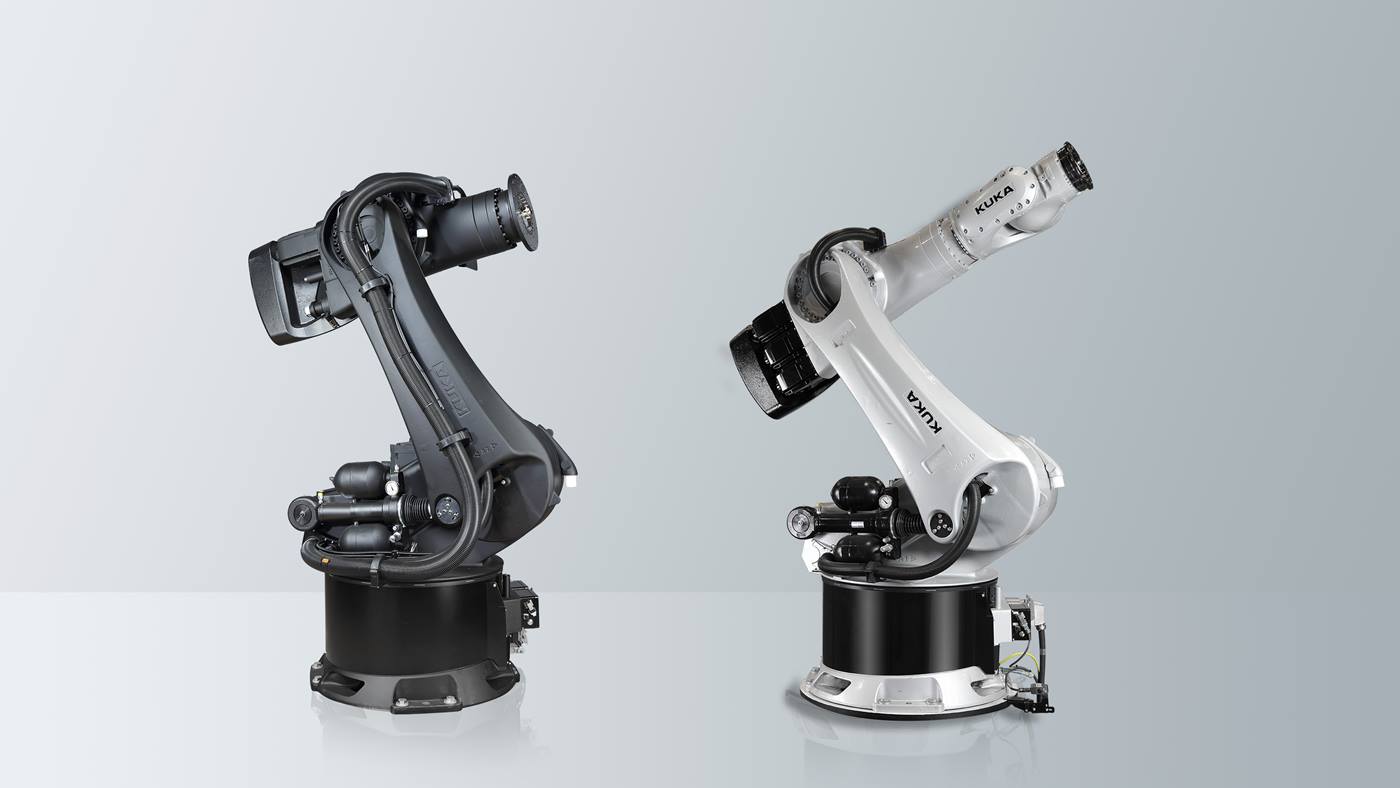

The KUKA passenger robot is available in two different variants:
Equipped with all essential basic properties – particularly certified safety and high payload capacity – both robots can be combined with customized accessories, depending on customer requirements, thereby opening up new possibilities for the world of amusement rides.
?
?

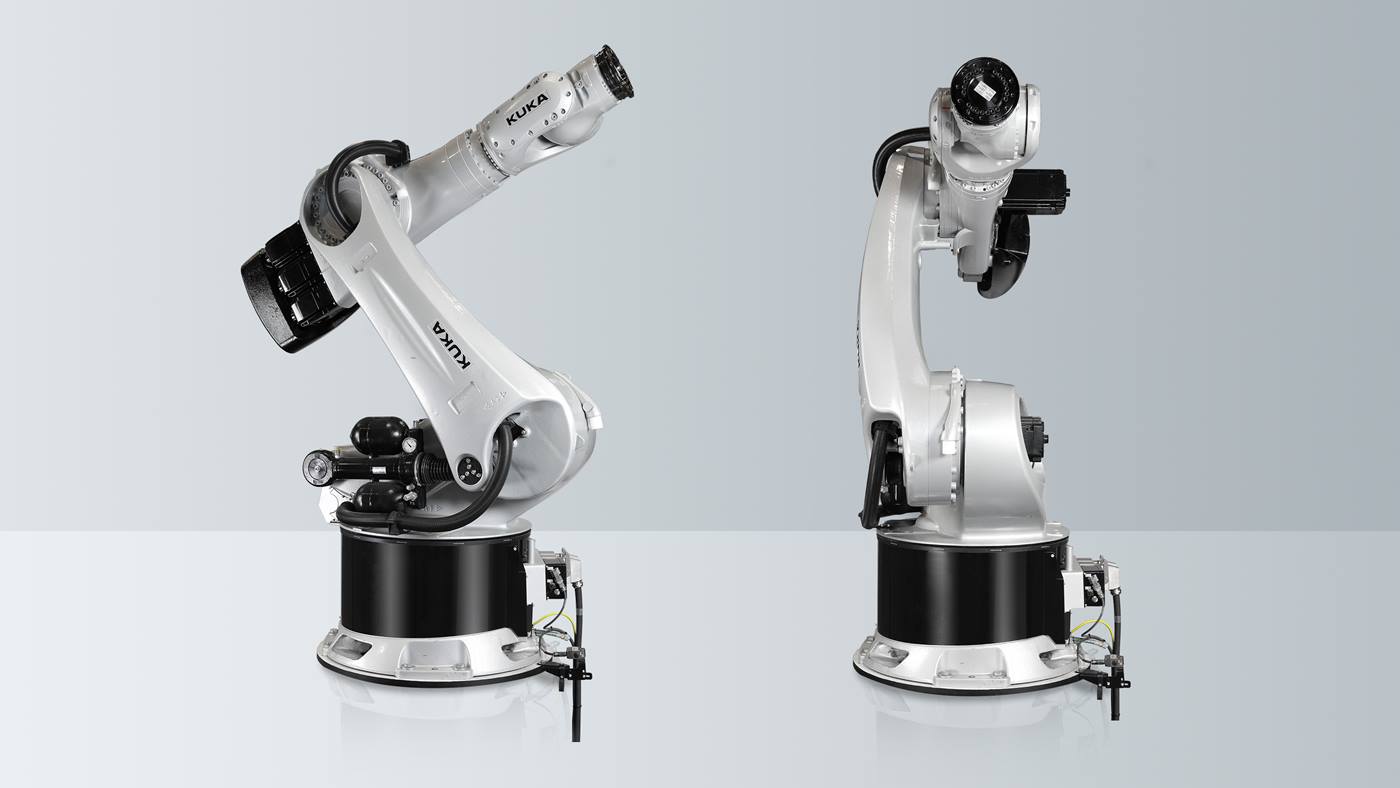

The KR?600 R2830 passenger with a payload capacity of 600 kg is the ideal robot for stationary rides and simulators with up to 3 passengers. Thanks to its precise and freely programmable 6-axis kinematic system, even highly dynamic motion sequences can be realized.

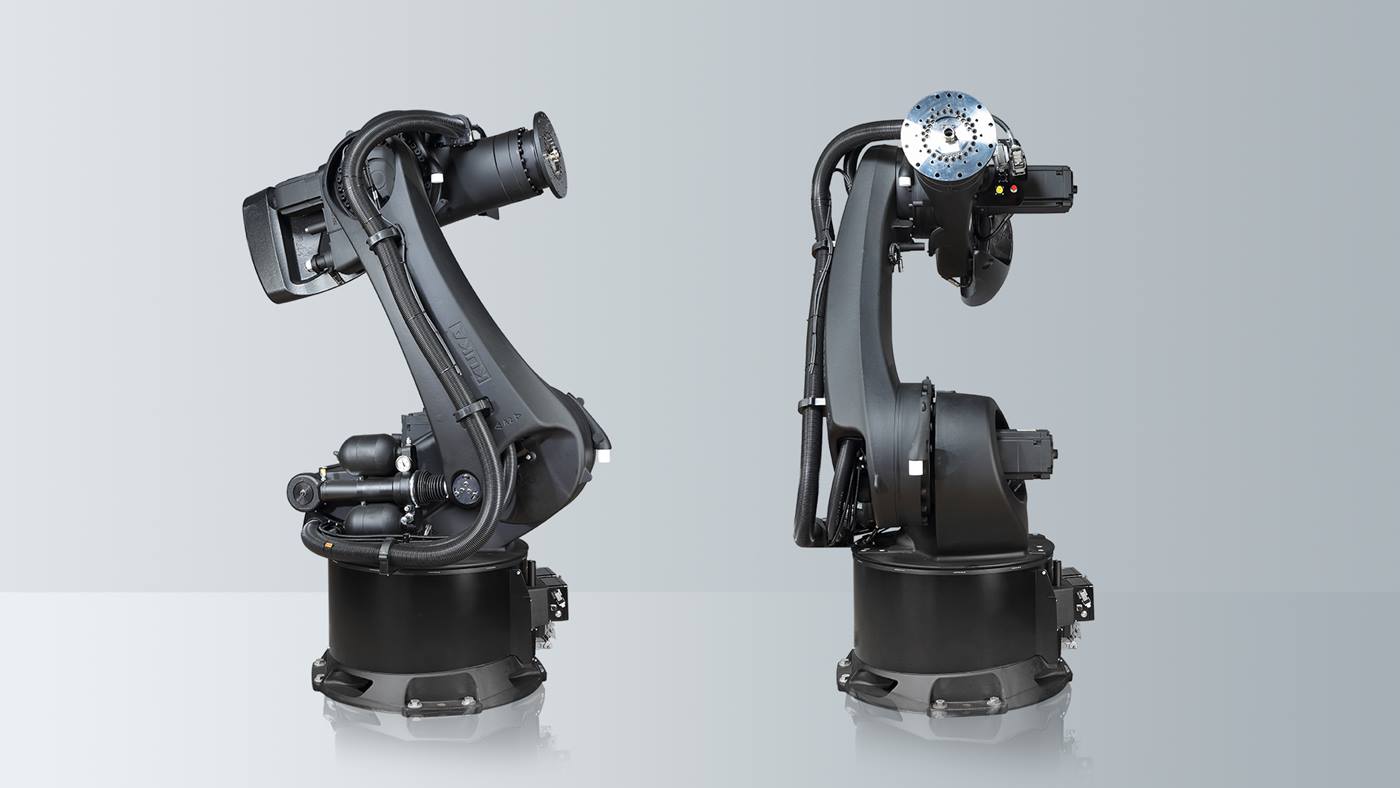

The flexible KR?700 R2510 passenger is suitable for stationary amusement rides and for integration in dark rides. The 4-axis kinematic system of the robot and its robot payload capacity of 700 kg make it possible to carry up to 4 passengers at a time.
Thanks to additional brakes (redundant brake / dual brake), the robot is particularly safe and is thus also suitable for integration in demanding environments.
| KR 700 R2510 passenger | ||
|---|---|---|
| Number of axes | 6 | 4 |
| Max. reach | 2,830 mm | 2,510 mm |
| Rated payload | 600 kg | 700 kg (800 kg with reduced payload distance) |
| Integration | Stationary (alone or in groups) | Stationary (alone or in groups) or on a carriage in a circuit |
| Controller | KR C4 SC2 passenger | KR C4 SC1PA passenger |
| Performance Level of controller | PLd | PLd |
| PL of brake activation interface | PLe | PLe |
| Pose repeatability (ISO?9283) | approx. ±0.08 mm | approx. ±0.08 mm |
| Robot footprint | 1,050 mm x 1,050 mm | 1,050 mm x 1,050 mm |
| Weight (excluding controller) approx.? | 2,650 kg | 2,650 kg |
| Protection rating | IP 65 | IP 65 |
| Special features | Highly dynamic and precise 6-axis kinematic system | 4-axis kinematic system with additional brakes and additional encoder (PLe) |
