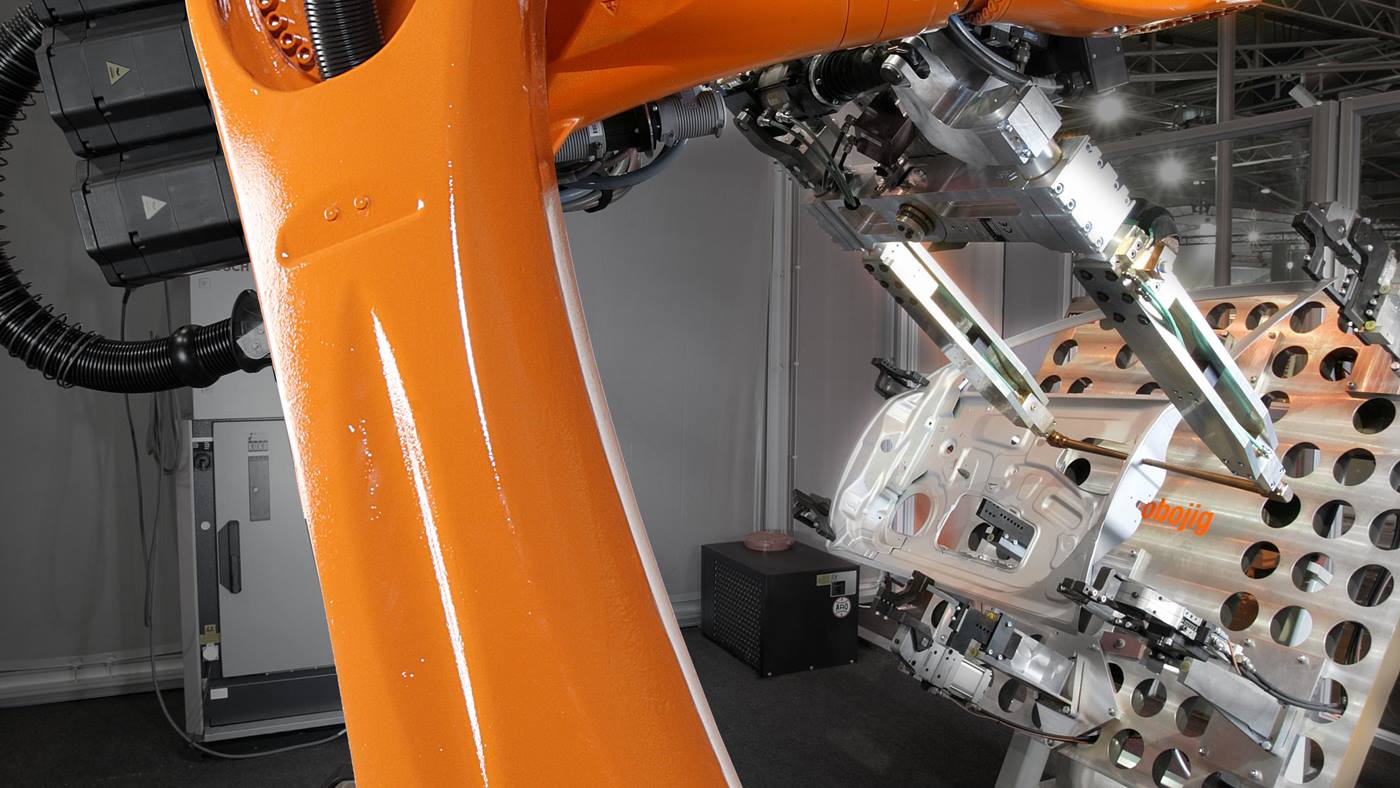

KUKA.ServoGun

Easy to install

KUKA.ServoGun is easy to configure thanks to its start-up wizard. Status keys make operating the basic functions very straightforward. Thanks to the detailed acceptance documentation, you can improve diagnosis and logging following start-up.

Flexible application

With KUKA.ServoGun, you can use any servomotors on the market that are compatible with KUKA controllers. An integrated operator control concept makes it possible to use inline forms for all applications. In addition, the software provides freely configurable weld timer interfaces and numerous expansion options. The effective welding gun force is independent of gravitational force, age and temperature.

Efficient calibration

The software allows for automatic force calibration using an external, controller-supported force sensor which is operated via the standard interface of the mastering sensor. In addition, background processes such as robot handling provide greater process efficiency during stationary tip dressing.

Precise compensation

Thanks to the new force control mechanism, you achieve greater force accuracy with KUKA.ServoGun. This ensures a higher level of quality, precision and resistance to external influences.?

Two technology variants are available in the KUKA.ServoGun technology package: firstly,?KUKA.ServoGun FC?(currently only available from KUKA) for the use of electric servomotors with an integrated force sensor and KUKA.ServoGun TC, which uses electric servomotors with the robot controller in torque mode. The two variants therefore cover different applications.

KUKA.ServoGun FC is suitable for:

• sheet combinations that are difficult to join, such as high-strength alloys, heavily coated metals and other unusual materials,
• material combinations that are difficult to weld and joining applications with high quality requirements

KUKA.ServoGun TC is suitable for:

• sheet combinations that are easy to join,
• material compositions that are easy to weld
