LBR iisy Cobot

Highly versatile, intuitive to operate and reliable in contact with humans – the LBR iisy is a cobot for all production areas. It combines the know-how of industrial automation with the flexibility and simplicity of an intelligent tool, paired with the speed of a traditional industrial robot.

Set it up, switch it on, get started._It’s iisy

Ready for use in just a few minutes –??the LBR iisy cobot stands out due to its intuitive operating features, which ensure that it can be put to use quickly and productively without any prior knowledge.

The robot uses the?iiQKA.OS operating system, making it?easy to install, configure and program. Tasks can be taught really easily?by means of manual guidance. Thanks to the smart teach pendant smartPAD pro, any additional programming tasks are as easy as using a smartphone.

An optional pre-installed and pre-configured gripper makes the cobot even easier to use.

Great reasons to opt for the LBR iisy

The LBR iisy industrial robot is ideally suited to a wide range of tasks in fields of application and in industries where precision, speed and dexterity are particularly important. It is used to load and unload machines, for pick-and-place and handling tasks, but also for packaging and testing.

The collaborative robot is impressive not only with its low weight, its incomparably high speed, the compact design and the integrated sensors, but above all because of its straightforward commissioning, which makes the LBR iisy a flexible assistant in the production environment.

Easy
- Ready for use in no time at all
- Teaching by hand
- Intuitive user interface
- Control via smartPAD pro
- No programming knowledge
- Option: pre-configured gripper
Collaborative & safe
- Detects collisions
- Measures process forces by means of joint torque sensors
- HRC-capable
- Simple maintenance using intervention areas
Flexibly expandable
- Internal cable routing for power supply
- Accessories can be installed easily using toolboxes
- Swift change of tasks
- Connection to iiQKA ecosystem
Value-adding
- Low investment costs
- High availability
- Large working radius, small footprint
- Industry-proven
- Combination of the advantages of the conventional robot and cobot

Custom-made or mass production._It’s iisy

Thanks to the new iiQKA.OS operating system and its industry-proven technology,?the LBR iisy collaborative robot can be quickly integrated into existing production landscapes. At the same time, the cobot fits seamlessly into rapidly changing manufacturing environments that produce customized goods – even with a batch size of 1.

3 - 15 Load capacity [kg]

760 - 1300 Reach [mm] (arm length)

The LBR iisy cobot can be deployed with ease in almost all production areas.

Immediately ready for productive use

The cobot can be ready for any production task in just a few minutes. Its intuitive operability and integrated manual guidance make commissioning effortless and programming simple.

Simple tool change

Tool changes?can be carried out on the LBR iisy in no time at all. All customary tools are docked onto the ISO flange, and the cable routing for the power supply is already integrated.?

Attractive design

Slim, lightweight and easy to handle – the LBR iisy, with its clear-cut design, invites you to touch it. There are no sharp edges, which makes programming by hand particularly agreeable. It can even be used in the tightest of spaces thanks to its minimal footprint.

Increased speed

The LBR iisy impresses with an extremely high joint speed, which makes it as fast as a traditional industrial robot. This sets it apart from conventional cobots and allows it to be operated with higher torques as well as at a higher speed.

Proven industrial suitability

The LBR iisy cobot not only has a field-proven and industrial-grade drive train, but also supports all the essential industry-standard features such as field bus protocols, digital I/Os, safety and more. It can therefore be integrated into any existing system with ease.

Cost-effective automation

The cost-effective equipment of the robot and the fact that it can be quickly integrated into production lines make the LBR iisy industrial robot an attractive proposition for?small and medium-sized companies as well.

Low weight

The cobot’s easy handling plays a crucial role in making it rewarding to use.?Due to its low weight, the LBR iisy can also be quickly moved to a different position.?

Smart robotics fully matching your expectations._It’s iisy

Sensitive and fast

The LBR iisy collaborative robot is equipped with sensitive joint torque sensors on all six axes. These enable force-based applications without additional force/torque sensors, allowing it to operate as responsively as a human hand and control forces independently. In addition, the robot arm reacts immediately to the slightest contact, providing safe and certified collision protection for the human operator.

If the robot works alone, without employees in the direct vicinity, even higher production speeds are possible that correspond to those of a traditional industrial robot.

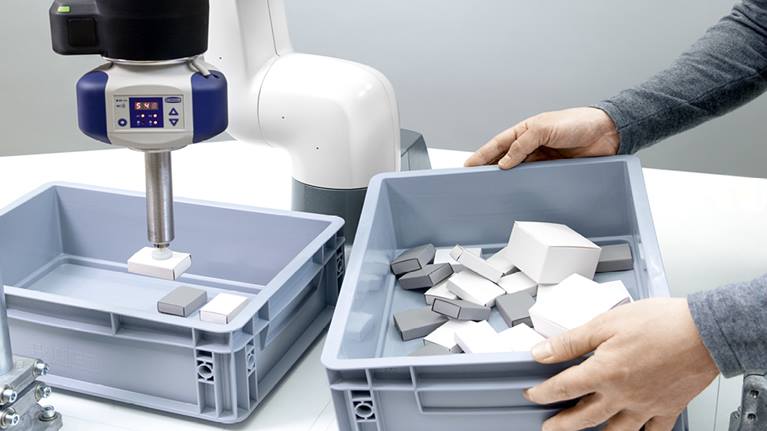

The collaborative robot does not exceed the specified force required for the task.

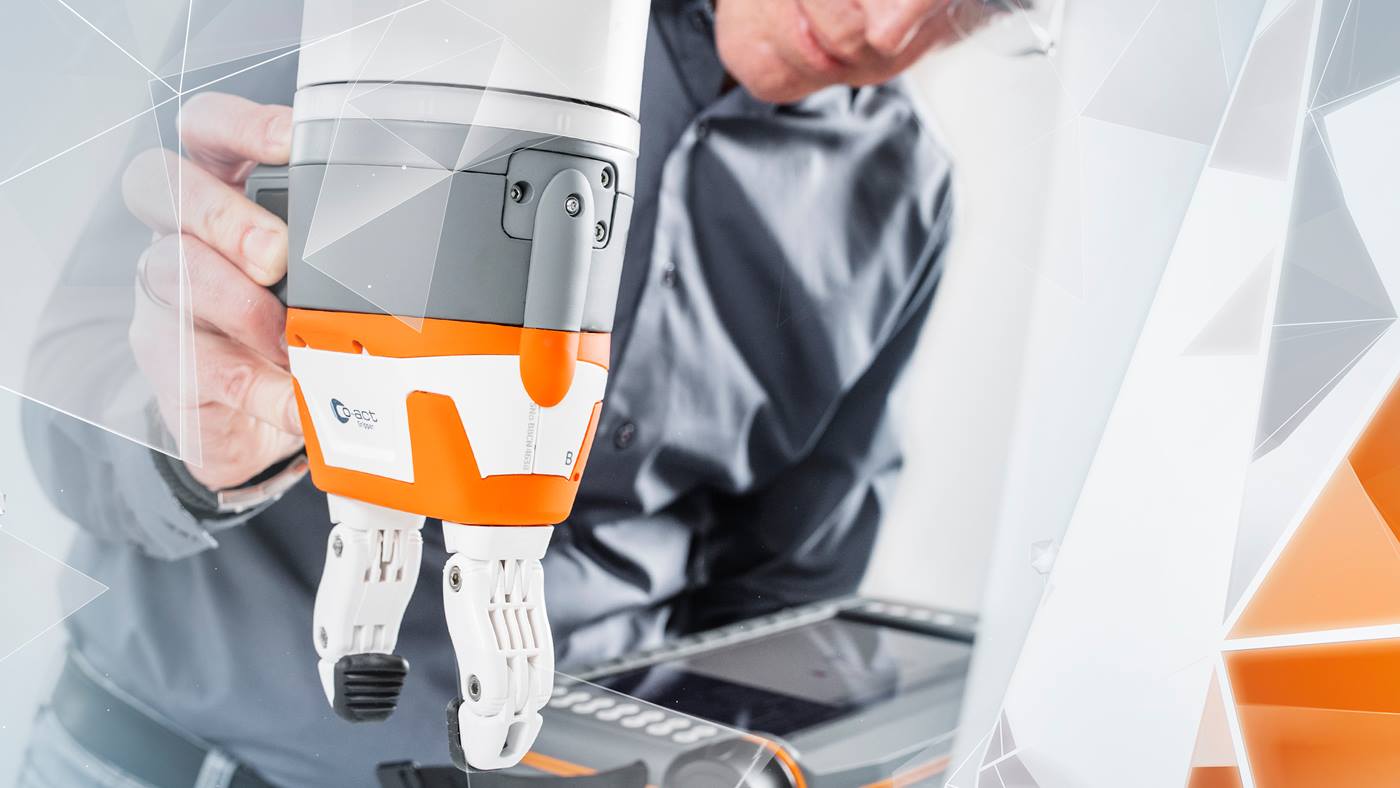

Teaching by manual guidance

Whether you are an automation novice or a robotics expert, the combination of the cobot and the user-friendly iiQKA.OS?operating system offers maximum flexibility and gives users the choice:

Teaching programmed points by means of simple manual guidance on the robot itself
Programming by means of the smart user interface of the smartPAD pro
More complex applications are possible thanks to the program tree concept, which is based on KUKA’s decades of experience in simplifying industrial robot programming

Guide the collaborative robot through all the work steps by hand, display all the steps in a graphical program tree, and then run the program. _It’s iisy

Easy to retrofit – from gripper to 3D recognition

Intelligent, modular and therefore flexible in its application: The LBR iisy robot brings human and machine together in a unique way. It can be expanded at any time with applications and accessories from KUKA and its partners from the iiQKA ecosystem and optimized for new tasks.

The optional features of the LBR iisy open up new possibilities for companies in terms of process automation:

Various grippers
Vision systems with 3D image recognition
KUKA.Sim simulation software
External energy supply system
24V power supply

Products are developed in the iiQKA ecosystem that can be retrofitted on the LBR iisy.

Easy to control

With the compact?KR?C5 micro?controller, integrating the robot into production operations is particularly easy and seamless. The intuitive operability is further enhanced by the powerful smartPAD pro. Its graphical user interface enables fast parametrization of work sequences without the need for specific programming knowledge.

The KR?C5 micro robot controller requires only a small amount of space – and very little energy.

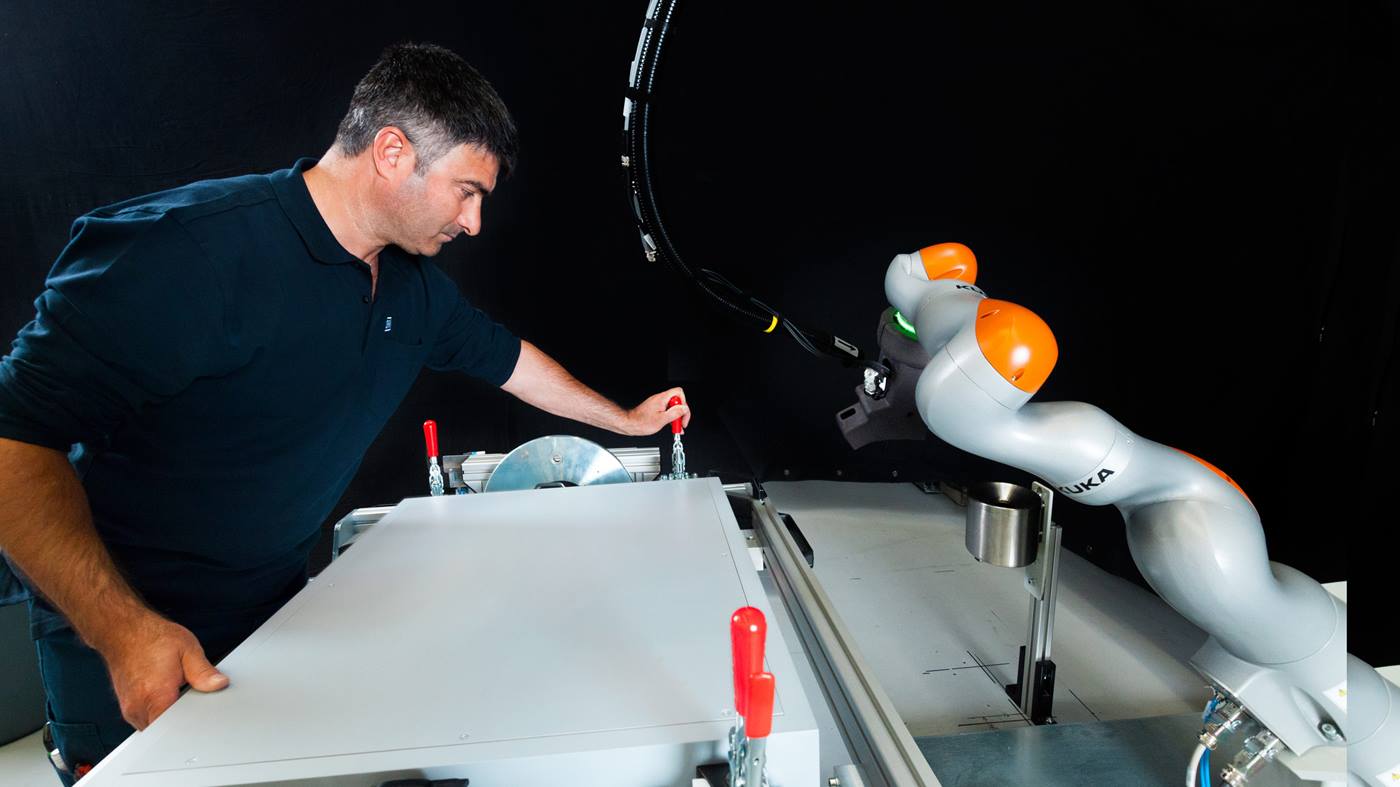

Safe human-robot collaboration

Special requirements apply to robotics whenever humans and machines work together.

The LBR iisy collaborative robot is equipped with highly sophisticated sensor technology for human-robot collaboration. Individual intervention zones can be determined by means of a risk analysis.
This creates collaborative workspaces that can also be used with ease to reprogram and maintain the cobot in a straightforward manner, for example.

Thanks to its safety features, the LBR iisy robot can work together with human operators in a workspace.

E-book: Cobots as a simple and cost-effective automation solution

What is the significance of collaborative robots for business? For which target groups are they worth it? All questions relating to cobot are clarified in our e-book. Our aim is to provide you with information and inspiration and encourage you to test the possibilities opened up by cobots for your specific requirements.

Download the e-book now, free of charge!

KUKA Cobot Portfolio

Our collaborative robots for diverse tasks: from autonomous mobile cobots for logistics to cobots for medicine.

3D simulation?– get to know the LBR iisy cobot

Choose between two different applications and get a 3D preview of the LBR iisy, with or without a safety fence depending on your needs. You can view the selected application easily from all sides, zooming in and out to get a close look at all the details of the collaborative robot.

Choose an application

Pick & Place

Handling Machine Tools

Choose safety measures

Laser Scanner

Protective fence

LBR iisy Cobot (6 axes) - technical data

LBR iisy 3 R760

Total load

3 kg

Maximum reach

760 mm

Version environment

Standard

Downloads

Download Center

Total load 3 kg
Maximum reach 760 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 30
Downloads Download Center
Controller
- KR C5 micro
Learn more KUKA Marketplace

LBR iisy 6 R1300

Total load

6 kg

Maximum reach

1300 mm

Version environment

Standard

Downloads

Download Center

Total load 6 kg
Maximum reach 1300 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 54
Downloads Download Center
Controller
- KR C5 micro
- n/a
Learn more KUKA Marketplace

LBR iisy 8 R930

Total load

8 kg

Maximum reach

930 mm

Version environment

Standard

Downloads

Download Center

Total load 8 kg
Maximum reach 930 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 54
Downloads Download Center
Controller
- KR C5 micro
- n/a
Learn more KUKA Marketplace

LBR iisy 11 R1300

Total load

11 kg

Maximum reach

1300 mm

Version environment

Standard

Downloads

Download Center

Total load 11 kg
Maximum reach 1300 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 54
Downloads Download Center
Controller
- KR C5 micro
- n/a
Learn more KUKA Marketplace

LBR iisy 11 R1300 CR

Total load

11 kg

Maximum reach

1300 mm

Version environment

Cleanroom

Downloads

Download Center

Total load 11 kg
Maximum reach 1300 mm
Construction type Standard
Version environment Cleanroom
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 54
Downloads Download Center
Controller
- KR C5 micro
Learn more KUKA Marketplace

LBR iisy 15 R930

Total load

15 kg

Maximum reach

930 mm

Version environment

Standard

Downloads

Download Center

Total load 15 kg
Maximum reach 930 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 54
Downloads Download Center
Controller
- KR C5 micro
- n/a
Learn more KUKA Marketplace

LBR iisy 15 R930 CR

Total load

15 kg

Maximum reach

930 mm

Version environment

Cleanroom

Downloads

Download Center

Total load 15 kg
Maximum reach 930 mm
Construction type Standard
Version environment Cleanroom
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 54
Downloads Download Center
Controller
- KR C5 micro
Learn more KUKA Marketplace

%x of %y robots visible

Request a quote or get more technical details for LBR iisy cobot

Request Quote Visit my.KUKA Marketplace
