KR IONTEC ultra

The KR IONTEC ultra is compact and powerful. With a payload range of 90 to 120 kilograms, the KR IONTEC delivers top performance in confined spaces, making it optimal for handling and welding applications.

Compact all-rounder for handling and welding

The KR IONTEC ultra excels in handling applications and when spot welding with lightweight weld guns. The robot is equally well-suited for battery handling in electromobility as it is for welding tasks at automotive suppliers.

90 - 120 Load capacity [kg]

2305 - 2702 Reach [mm] (arm length)

Focus on cost-effective automation

Expansion of the portfolio

The KR IONTEC ultra fits into the KUKA product portfolio within a payload range of 90 to 120 kg. It offers flexibility with a reach between 2,300 and 2,700 mm.

Low service requirements

The robot is very economical to maintain, requiring oil changes only every 20,000 operating hours. Additionally, its efficient design minimizes the need for spare parts.

Space-saving design

Thanks to its compact dimensions, the KR IONTEC ultra is optimally suited to confined workspaces, enabling the implementation of narrow automation cells and reducing costs.

Ideal for electromobility

With a payload of up to 120 kg, the robot can also handle heavy battery cells for electromobility. It also fits into small welding cells, which makes it highly sought after by suppliers in the automotive industry.

Intuitive operation

The KR IONTEC ultra can be quickly integrated into existing production environments. Thanks to the KUKA.PLC mxAutomation interface, it is easy to program and operate.

Beneficial for entry into automation

The KR IONTEC ultra, with its compact design, is ideal for getting started in automation. With a smaller footprint compared to the KR QUANTEC, it achieves a high performance.

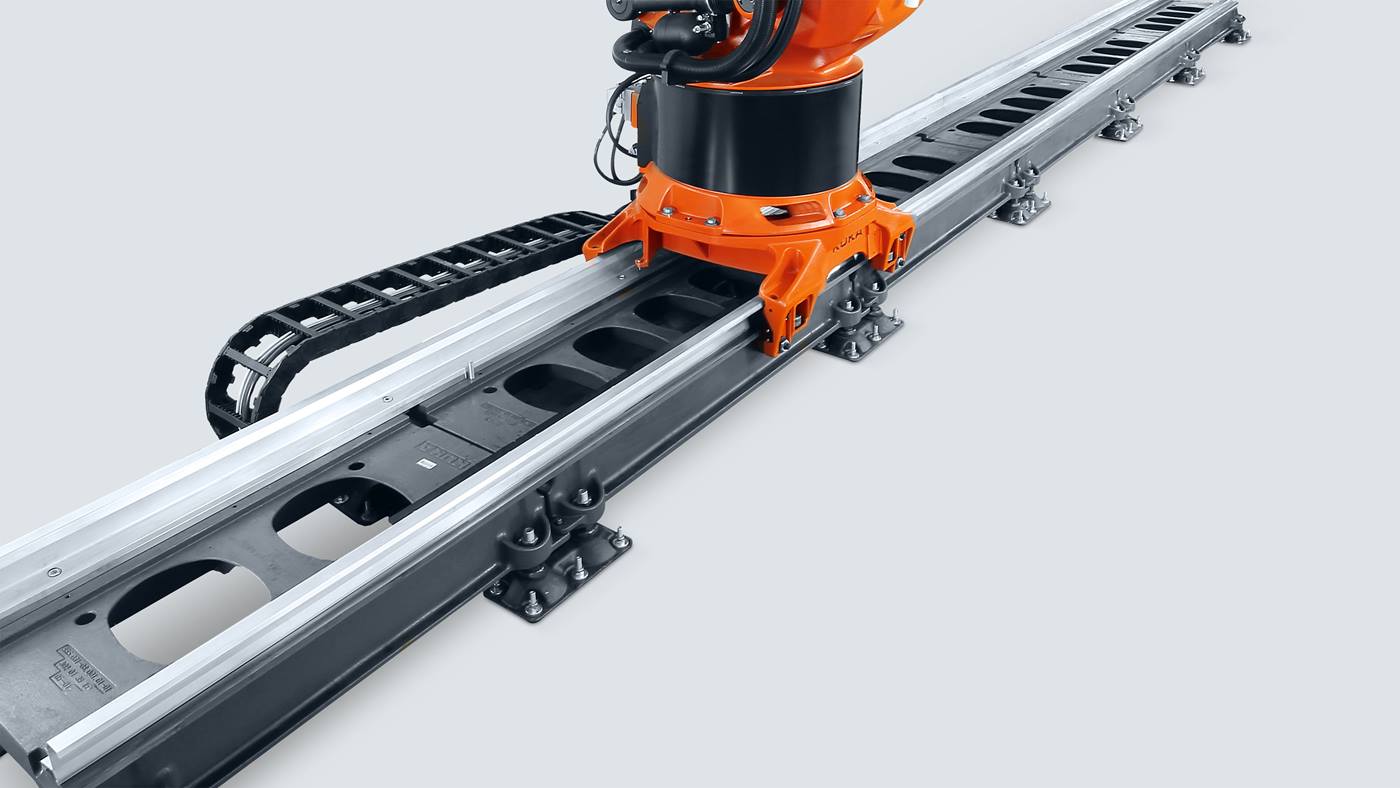

KL 4000 linear axis

The motion unit can be expanded to up to 31.5 m.

KR IONTEC ultra (6 axes) - technical data

KR 90 R2300

Total load

90 kg

Maximum reach

2305 mm

Version environment

Standard

Downloads

Download Center

Total load 90 kg
Maximum reach 2305 mm
Construction type Standard
Version environment Standard
Mounting positions Ceiling, Floor

Protection class IP 65, IP 67
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 90 R2700

Total load

90 kg

Maximum reach

2702 mm

Version environment

Standard

Downloads

Download Center

Total load 90 kg
Maximum reach 2702 mm
Construction type Standard
Version environment Standard
Mounting positions Ceiling, Floor

Protection class IP 65, IP 67
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 120 R2300

Total load

120 kg

Maximum reach

2305 mm

Version environment

Standard

Downloads

Download Center

Total load 120 kg
Maximum reach 2305 mm
Construction type Standard
Version environment Standard
Mounting positions Ceiling, Floor

Protection class IP 65, IP 67
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 120 R2700

Total load

120 kg

Maximum reach

2702 mm

Version environment

Standard

Downloads

Download Center

Total load 120 kg
Maximum reach 2702 mm
Construction type Standard
Version environment Standard
Mounting positions Ceiling, Floor

Protection class IP 65, IP 67
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace
