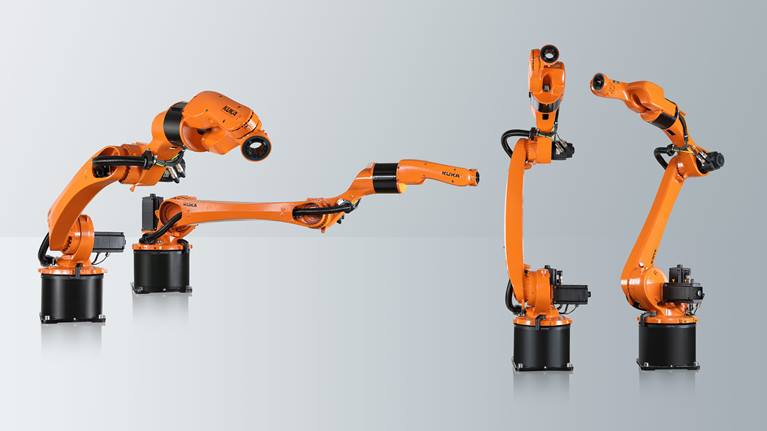

KR CYBERTECH ARC
The new industrial robots from the KR CYBERTECH ARC product family are characterized by their utmost precision and top performance. The low-maintenance series ensures particularly low follow-up costs.

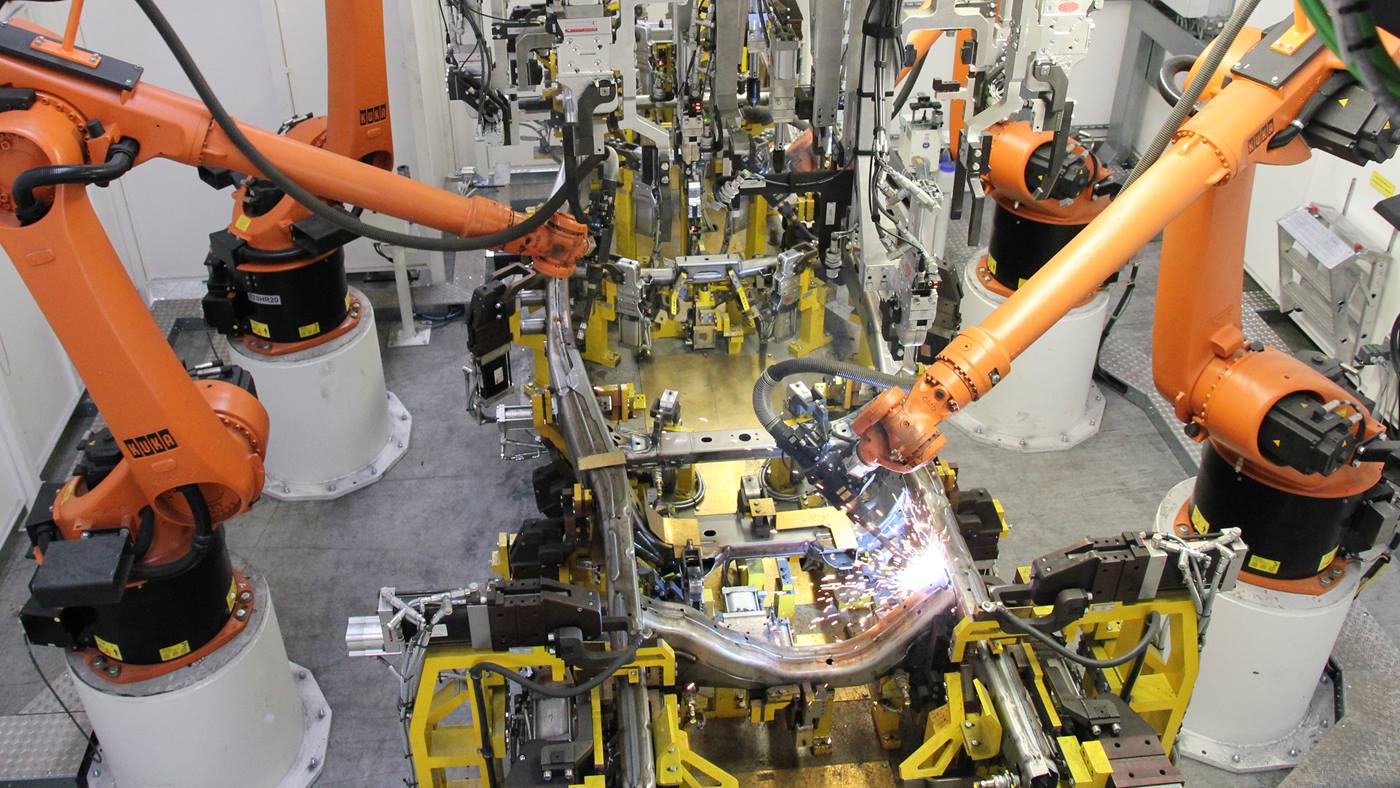

The industrial robots of the KR CYBERTECH ARC product family are specialized process robots for continuous-path applications such as arc welding and the application of adhesives and sealants. They are suitable for the KR?C4 and KR?C4 extended controllers.
8 - 8 Load capacity [kg]
2101 - 2101 Reach [mm] (arm length)
KR CYBERTECH ARC (6 axes) - technical data
Robots
Total load
Maximum reach
Version environment
Downloads
KR 8 R2100-2 arc HW
Total load
8 kg
Maximum reach
2101 mm
Version environment
Standard
Downloads
- Total load 8 kg
- Maximum reach 2101 mm
- Construction type Hollow Wrist
- Version environment Standard
- Mounting positions Angle, Ceiling, Floor, Wall
- Protection class IP 54, IP 65
- Downloads Download Center
-
Controller
- KR C5
- n/a
