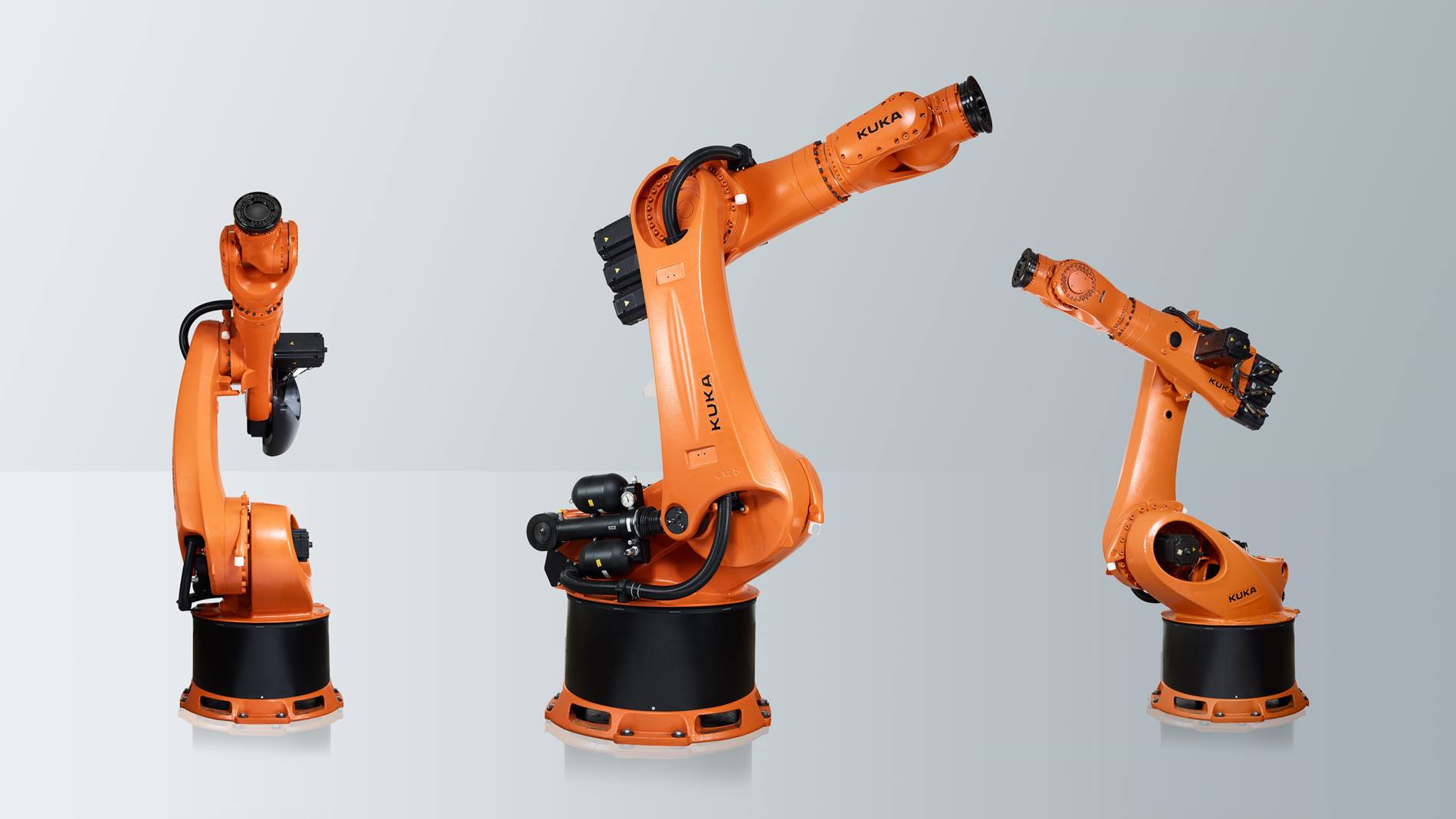

KR 500 FORTEC
The KR 500 FORTEC is our versatile heavy-duty robot that is suitable for a wide range of applications. For example, the Machine Tool variant is predestined for milling applications in the high payload range, while the Foundry variant is perfectly suited to heavy-duty tasks in the foundry.
The exceptional product quality that the KR 500 FORTEC delivers in milling and other applications is based on two fundamental features that inspired the robot’s name: strength and proven technology. Reaches of up to 3,326 millimeters enable large workpieces to be processed, even in confined cells. Thanks to its streamlined design with minimized interference contours, the robot provides you with an unusually large workspace and the maximum possible payload distances.
340 - 500 Load capacity [kg]
2485 - 3326 Reach [mm] (arm length)
KR 500 FORTEC (6 axes) - technical data
Robots
Total load
Maximum reach
Version environment
Downloads
KR 340 R3330
Total load
340 kg
Maximum reach
3326 mm
Version environment
Standard
Downloads
- Total load 340 kg
- Maximum reach 3326 mm
- Construction type Standard
- Version environment Standard
- Mounting positions Floor
- Protection class IP 65
- Downloads Download Center
- Controller
- Learn more KUKA Marketplace
KR 340 R3330 F
Total load
340 kg
Maximum reach
3326 mm
Version environment
Foundry
Downloads
- Total load 340 kg
- Maximum reach 3326 mm
- Construction type Standard
- Version environment Foundry
- Mounting positions Floor
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
- Learn more KUKA Marketplace
KR 420 R3080
Total load
420 kg
Maximum reach
3076 mm
Version environment
Standard
Downloads
- Total load 420 kg
- Maximum reach 3076 mm
- Construction type Standard
- Version environment Standard
- Mounting positions Floor
- Protection class IP 65
- Downloads Download Center
- Controller
- Learn more KUKA Marketplace
KR 420 R3080 F
Total load
420 kg
Maximum reach
3076 mm
Version environment
Foundry
Downloads
- Total load 420 kg
- Maximum reach 3076 mm
- Construction type Standard
- Version environment Foundry
- Mounting positions Floor
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
- Learn more KUKA Marketplace
KR 500 R2830
Total load
500 kg
Maximum reach
2826 mm
Version environment
Standard
Downloads
- Total load 500 kg
- Maximum reach 2826 mm
- Construction type Standard
- Version environment Standard
- Mounting positions Floor
- Protection class IP 65
- Downloads Download Center
- Controller
- Learn more KUKA Marketplace
KR 500 R2830 C
Total load
500 kg
Maximum reach
2485 mm
Version environment
Standard
Downloads
- Total load 500 kg
- Maximum reach 2485 mm
- Construction type Standard
- Version environment Standard
- Mounting positions Ceiling
- Protection class IP 65
- Downloads Download Center
- Controller
- Learn more KUKA Marketplace
KR 500 R2830 C-F
Total load
500 kg
Maximum reach
2485 mm
Version environment
Foundry
Downloads
- Total load 500 kg
- Maximum reach 2485 mm
- Construction type Standard
- Version environment Foundry
- Mounting positions Ceiling
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
- Learn more KUKA Marketplace
KR 500 R2830 F
Total load
500 kg
Maximum reach
2826 mm
Version environment
Foundry
Downloads
- Total load 500 kg
- Maximum reach 2826 mm
- Construction type Standard
- Version environment Foundry
- Mounting positions Floor
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
- Learn more KUKA Marketplace
KR 500 R2830 MT
Total load
500 kg
Maximum reach
2826 mm
Version environment
Standard
Downloads
- Total load 500 kg
- Maximum reach 2826 mm
- Construction type Machine Tooling
- Version environment Standard
- Mounting positions Floor
- Protection class IP 65
- Downloads Download Center
- Controller
- Learn more KUKA Marketplace
KR 500 R2830 MT-F
Total load
500 kg
Maximum reach
2826 mm
Version environment
Foundry
Downloads
- Total load 500 kg
- Maximum reach 2826 mm
- Construction type Machine Tooling
- Version environment Foundry
- Mounting positions Floor
- Protection class IP 65, IP 67
- Downloads Download Center
- Controller
- Learn more KUKA Marketplace
