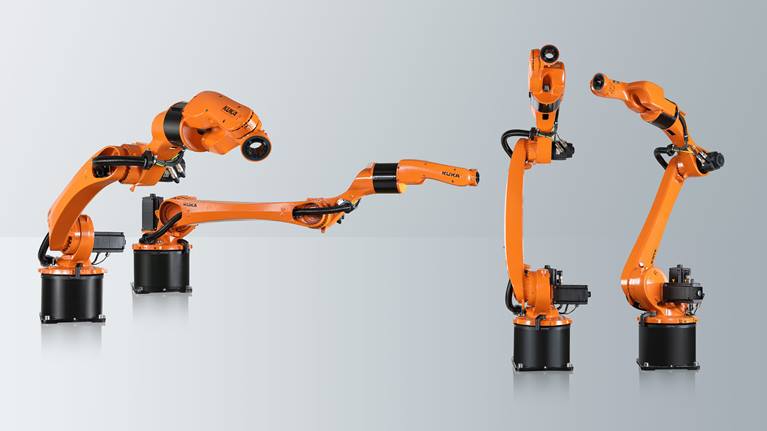

KR CYBERTECH

The KR CYBERTECH family represents a wide range of models in the payload class of up to 35 kg – with high power density. KR CYBERTECH robots are ideal for compact cell concepts. They boast impressively reliable performance and low operating costs.

The right solution for your requirements with a wide range of variants

The KR CYBERTECH series offers a compact design for high integration density and reduced interference contours. It's ideal for space-saving cell concepts. The finely-graded portfolio meets all requirements of the low payload class in terms of payload and reach, from hygienic clean room and food options to robust foundry designs. Typical applications include the handling of larger components, mechanical processing, assembly, and light palletizing. Gas-shielded welding can also be implemented as an option.

Thanks to compatibility with the iiQKA.OS2 operating system and the KR C5 slim controller, KR CYBERTECH robots are AI-ready and open up new perspectives for future-oriented automation. Benefit from flexible application options, high precision, and a cost-effective solution for your processes.

Ideal for handling, assembly, and machining steps

Photovoltaic wafer handling

Precise handling of sensitive wafers for photovoltaic modules – with high path accuracy and repeatability for reliable manufacturing.
Handling and assembly for general industry

Flexible handling and assembly of components in diverse production environments – ideal for compact cell concepts.
Surface treatment

Designed for grinding, polishing, and deburring. Rigid, impact-resistant wrist for consistent results.
Machine loading and parts removal

Efficient machine tool loading and unloading with compact design and flexible mounting for seamless integration

Request a quote or get more technical details for KR CYBERTECH

Request Quote Visit my.KUKA Marketplace

0 - 35 Load capacity [kg]

0 - 2013 Reach [mm] (arm length)

KR CYBERTECH's core strengths at a glance

Compact design

Slim central hand and reduced interference contours

Extremely compact design for maximum integration density

High flexibility

Various special designs, such as hygienic robots, clean room robots, foundry robots, and console robots

Mounting at all angles (floor, wall, ceiling)

Precise and dynamic movements

High speeds and precise path accuracy

Optimized controller structures for smooth, controlled movement

Repeatability: ±0.03 mm

High stability and resilience

Solid wrist for increased rigidity

High impact resistance and durability

High load capacity and rotational inertia of the wrist

Application-specific expandability

Tool integration: grippers, welding torches, grinding and machining tools.

Interfaces: additional I/O modules, fieldbus systems, vision systems.

Optional external hose packages and cable set variants

Certifications

IP65/IP67 protection rating at the central wrist joint

Clean room ISO class 5 and ISO class 4

ESD protection as standard

Globally certified according to CE, NRTL, and CR

Future-proofing

Intuitive operation via a web-based UI

Multi-protocol compatibility for easy integration

AI compatibility for future automation concepts

KR CYBERTECH (6 axes) - technical data

KR 20 R1820-2 E D01

Total load

0 kg

Maximum reach

0 mm

Version environment

Standard

Downloads

Download Center

Total load 0 kg
Maximum reach 0 mm
Construction type Standard
Version environment Standard

Downloads n/a
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 8 R2010-2

Total load

8 kg

Maximum reach

2013 mm

Version environment

Standard

Downloads

Download Center

Total load 8 kg
Maximum reach 2013 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 65
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 12 R1810-2

Total load

12 kg

Maximum reach

1813 mm

Version environment

Standard

Downloads

Download Center

Total load 12 kg
Maximum reach 1813 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 65
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 16 R1610-2

Total load

16 kg

Maximum reach

1612 mm

Version environment

Standard

Downloads

Download Center

Total load 16 kg
Maximum reach 1612 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 65
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 16 R2010-2

Total load

16 kg

Maximum reach

2013 mm

Version environment

Standard

Downloads

Download Center

Total load 16 kg
Maximum reach 2013 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 65
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 20 R1810 CR

Total load

20 kg

Maximum reach

1813 mm

Version environment

Cleanroom

Downloads

Download Center

Total load 20 kg
Maximum reach 1813 mm
Construction type Standard
Version environment Cleanroom
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 65
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 20 R1810 F

Total load

20 kg

Maximum reach

1813 mm

Version environment

Foundry

Downloads

Download Center

Total load 20 kg
Maximum reach 1813 mm
Construction type Standard
Version environment Foundry
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 65, IP 67
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 20 R1810 HO

Total load

20 kg

Maximum reach

1813 mm

Version environment

Food

Downloads

Download Center

Total load 20 kg
Maximum reach 1813 mm
Construction type Standard
Version environment Food
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 65, IP 67
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 20 R1810-2

Total load

20 kg

Maximum reach

1813 mm

Version environment

Standard

Downloads

Download Center

Total load 20 kg
Maximum reach 1813 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 65
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 20 R1820-2 E

Total load

20 kg

Maximum reach

1820 mm

Version environment

Standard

Downloads

Download Center

Total load 20 kg
Maximum reach 1820 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 54, IP 67
Downloads Download Center
Controller
- KR C5
Learn more KUKA Marketplace

KR 20 R2010 KS-F

Total load

20 kg

Maximum reach

2010 mm

Version environment

Foundry

Downloads

Download Center

Total load 20 kg
Maximum reach 2010 mm
Construction type Low base
Version environment Foundry
Mounting positions Floor

Protection class IP 65, IP 67
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 22 R1610-2

Total load

22 kg

Maximum reach

1612 mm

Version environment

Standard

Downloads

Download Center

Total load 22 kg
Maximum reach 1612 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 65
Downloads Download Center
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 25 R1840-3

Total load

25 kg

Maximum reach

1840 mm

Version environment

Standard

Downloads

Download Center

Total load 25 kg
Maximum reach 1840 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 54, IP 67
Downloads n/a
Controller
- KR C5
- n/a
Learn more KUKA Marketplace

KR 35 R1840-3

Total load

35 kg

Maximum reach

1840 mm

Version environment

Standard

Downloads

Download Center

Total load 35 kg
Maximum reach 1840 mm
Construction type Standard
Version environment Standard
Mounting positions Angle, Ceiling, Floor, Wall

Protection class IP 54, IP 67
Downloads n/a
Controller
- KR C5
- n/a
Learn more KUKA Marketplace
